Infrared filter

Filters for the 1-14 µm range

Filters for the infrared spectrum

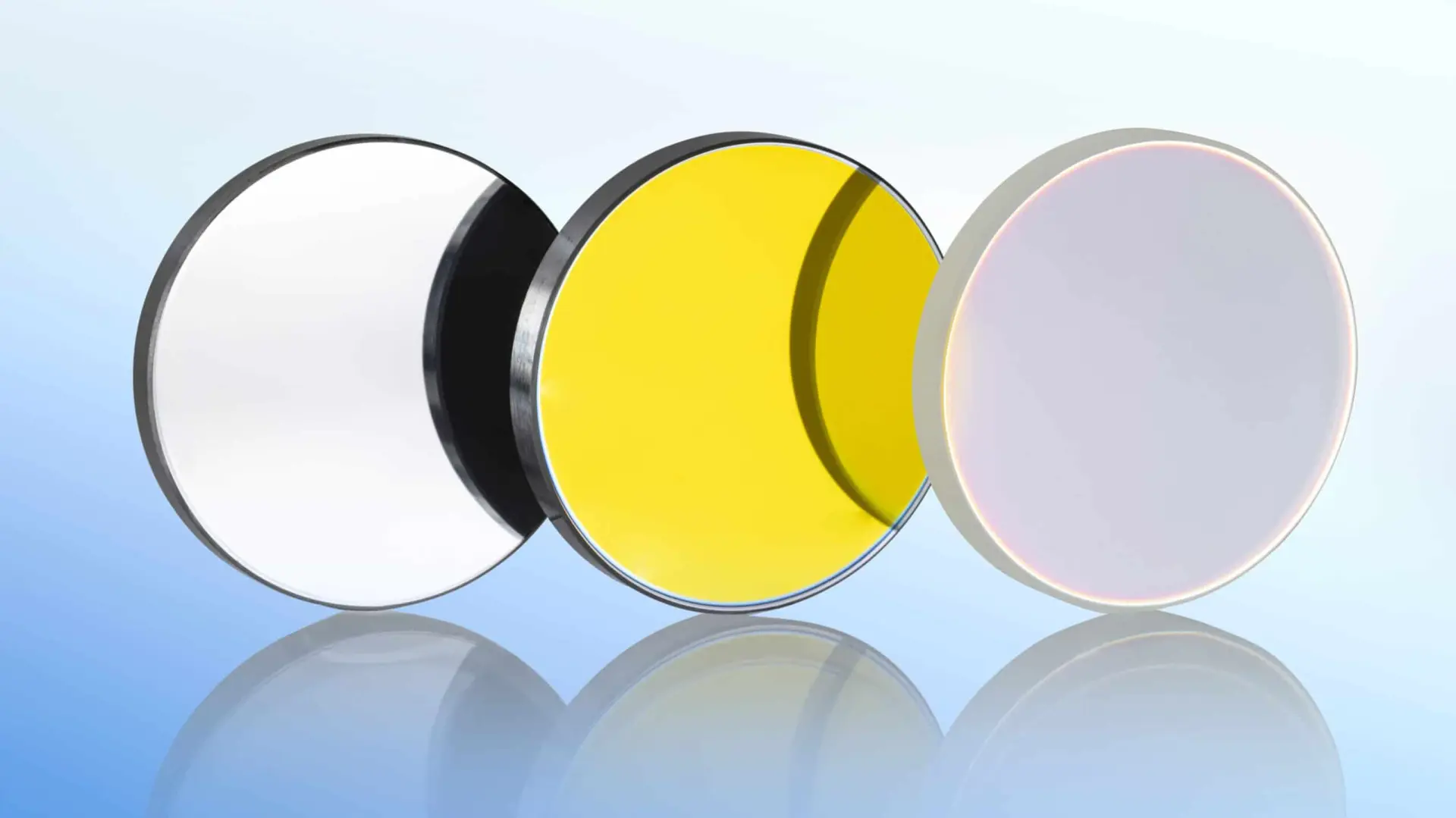

IR filters of Pleiger Laser Optics are made of silicon, germanium, sapphire, IR fused silica and ZnSe. The bandpass filters are usually used for gas analysis (H2O, ethanol, methanol, formaldehyde, CO2, CO, NO) and measurement technology.

Neutral density filters (grey filters) are placed in front of the sensors to reduce the amount of light on the detector. Long and short-pass filters are used to block out spectral ranges.

Filter materials

IR filters with a high-quality PVD coating with high transmission in the application area. We offer filters made from these materials:

Germanium
Glasses (Infrasil / N-BK7)
Silicon
Sapphire
Zinc selenide

Filter designs

Filter designs:

Bandpass filters (gas detection)
Long-pass filters
Short-pass filters
Wavelength range: 0.8 - 12 µm

Areas of application for our IR filters

Environmental measurements
Temperature measurements
Thermography, such as in thermal imaging cameras
Safety systems to monitor production processes
Determining emission values
Monitoring of incineration plants and refineries
Quality control, for example in the production of chemicals

Advantages of dielectric coatings

Pleiger Laseroptik offers a unique coating service to customise infrared filters for your applications. This is necessary to protect the components against environmental influences and to optimise performance.

Using the innovative PVD process, we achieve extremely thin layers with an ideal surface structure. You can choose between metallic and dielectric coatings or combined variants.

We use coating technology to improve the filter behaviour at certain wavelengths. Or we can control the transmission of infrared light at steep angles of incidence if this is required due to a measurement setup.

Germanium filters

We guarantee IR filters with long life cycles. These contribute to economical production processes and low-maintenance procedures. We would be happy to advise you in detail on the advantages of certain materials.

As a user, you benefit from the robust coatings in practice. The handling of the optics is simplified enormously. This is precisely why industrial companies rely on Pleiger's services.

High stability against environmental influences
Wide range of applications
Experience and expertise for the SWIR to LWIR

Do you need more information about our filters? Please feel free to contact us!

+49 2324 398-401 info@pleiger-laseroptik.de
